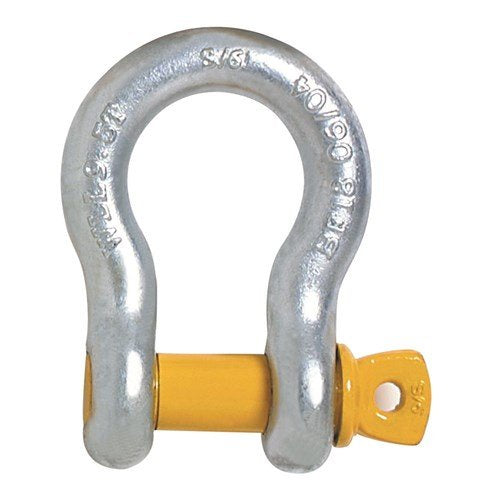

Beaver Screw Pin Shackles are rated shackles used mainly for non-permanent applications.
Grade S shackles are recommended where a high strength to weight ratio is required, therefore making them ideal for lifting, towing, and 4WD applications.
Product Features:
- Hot dip galvanised for corrosion protection.
- Suitable for lifting & towing applications.
- Marked with WLL, quality grade, size, batch ID / date of manufacture
- Proof tested to the Australian Standard
- Test certificates available on request
Approved Standards:
- Complies to AS 2741
| Product Code | Size | WLL | Type | Shape | Closing Method | Weight | Diameter |
| 242305 | 5mm x 6mm | 0.33t | Grade S | Bow | Screw | 0.03kg | 5mm |
| 242306 | 6mm x 8mm | 0.50t | Grade S | Bow | Screw | 0.05kg | 6mm |
| 242308 | 8mm x 10mm | 0.75t | Grade S | Bow | Screw | 0.09kg | 8mm |
| 242310 | 10mm x 11mm | 1.0t | Grade S | Bow | Screw | 0.14kg | 10mm |
| 242311 | 11mm x 13mm | 1.50t | Grade S | Bow | Screw | 0.17kg | 11mm |
| 242313 | 13mm x 16mm | 2.00t | Grade S | Bow | Screw | 0.33kg | 13mm |
| 242316 | 16mm x 19mm | 3.20t | Grade S | Bow | Screw | 0.63kg | 16mm |
| 242319 | 19mm x 22mm | 4.70t | Grade S | Bow | Screw | 1.07kg | 19mm |
| 242322 | 22mm x 25mm | 6.50t | Grade S | Bow | Screw | 1.65kg | 22mm |
| 242325 | 25mm x 29mm | 8.50t | Grade S | Bow | Screw | 2.30kg | 25mm |
| 242329 | 29mm x 32mm | 9.5t | Grade S | Bow | Screw | 3.28kg | 29mm |
| 242332 | 32mm x 35mm | 12t | Grade S | Bow | Screw | 4.51kg | 32mm |
| 242335 | 35mm x 38mm | 13.5t | Grade S | Bow | Screw | 5.43kg | 35mm |
| 242338 | 38mm x 41mm | 17t | Grade S | Bow | Screw | 7.89kg | 38mm |
| 242344 | 44mm x 51mm | 25t | Grade S | Bow | Screw | 13.40kg | 44mm |
| 242351 | 51mm x 57mm | 35t | Grade S | Bow | Screw | 18.85kg | 51mm |
| 242363 | 63mm x 70mm | 55t | Grade S | Bow | Screw | 37.86kg | 63mm |
