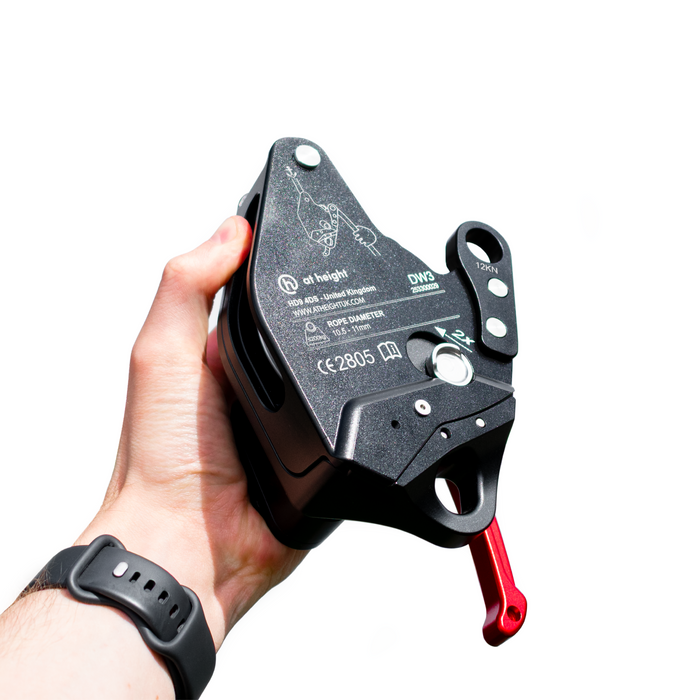

At Height UK Drill Winch (Pro)

The DW3 Drill Winch by At Height Ltd is used for lifting/lowering people and materials. It can be used in many applications including work at height, rescue, rigging and materials handling.

The DW3 has been certified by a Notified Body in accordance with the Machinery Directive 2006/42/EC Annex 4 part 17 and meet the Essential Health and Safety Requirements of Annex 1.

DW3 weight: 1.5kg. Max rated load with 10.5mm/11mm rope is 200kg

All devices are packaged in a hard plastic case and include spare hex keys. Each device is individually serial numbered for improved traceability.

For optimum efficiency we recommend using a brushless drill with a torque rating in excess of 100Nm and a battery rated in excess of 5.0Ah.

• Rope Diameter Range Ø 10.5 & 11mm to EN1891A
• Maximum Rated Load 200kg
• Dimensions 160 x 120 x 85mm
• Becket MBS 12kN
• Weight 1.5kg
• Material Aluminium & Stainless Steel
• Gearing 8:1
• Standards Machinery Directive 2006/42/EC Annex 4
