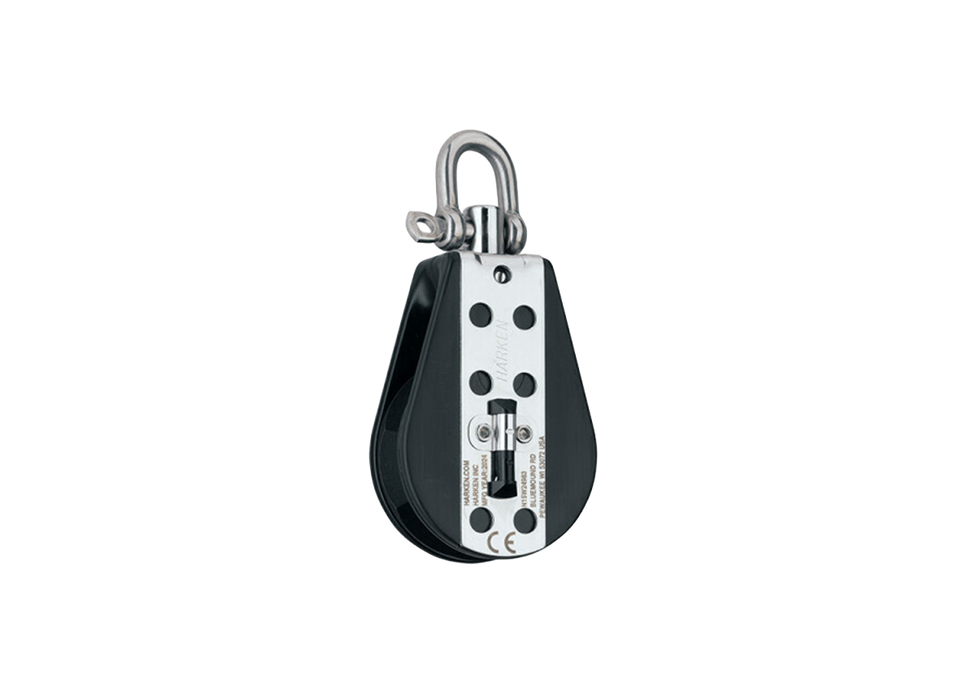

Harken 76mm Classic Hexaratchet Single Pulley - Swivel w Ratchet
by Harken
Original price
$416.72
-
Original price
$416.72
Original price
$416.72
$416.72
-
$416.72
Current price
$416.72
Availability:
5 in stock, ready to be shipped – backorders also available
Midrange Hexaratchet pulleys grip loaded ropes, relieving holding loads while maintaining quick ease and haul with complete control.

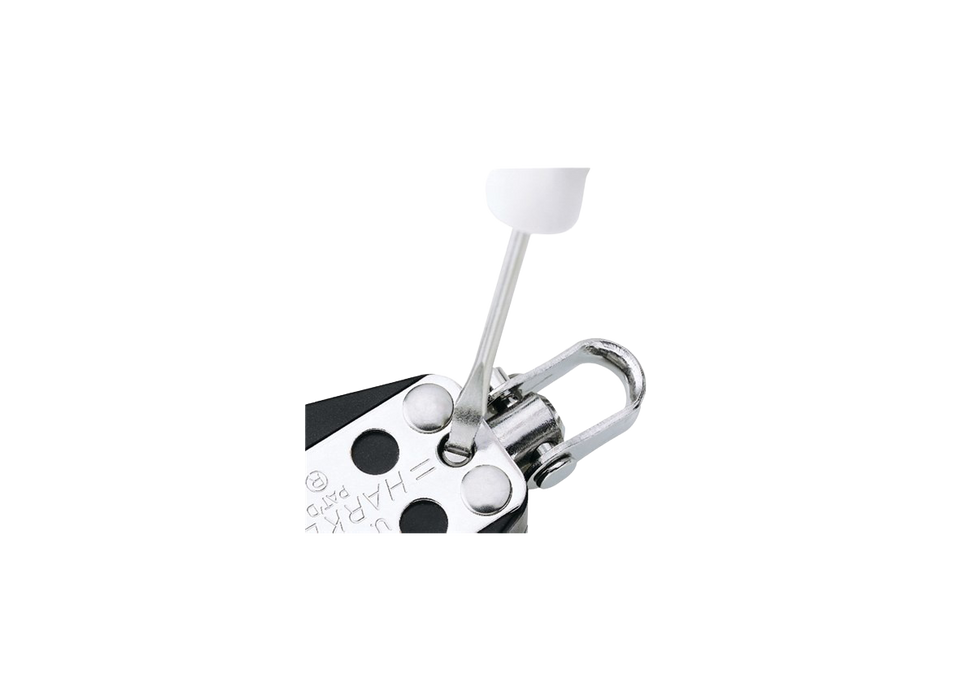

A switch on the side engages and disengages the ratchet mechanism.
Pulley shackle locks in two directions or swivels to keep rope from twisting.

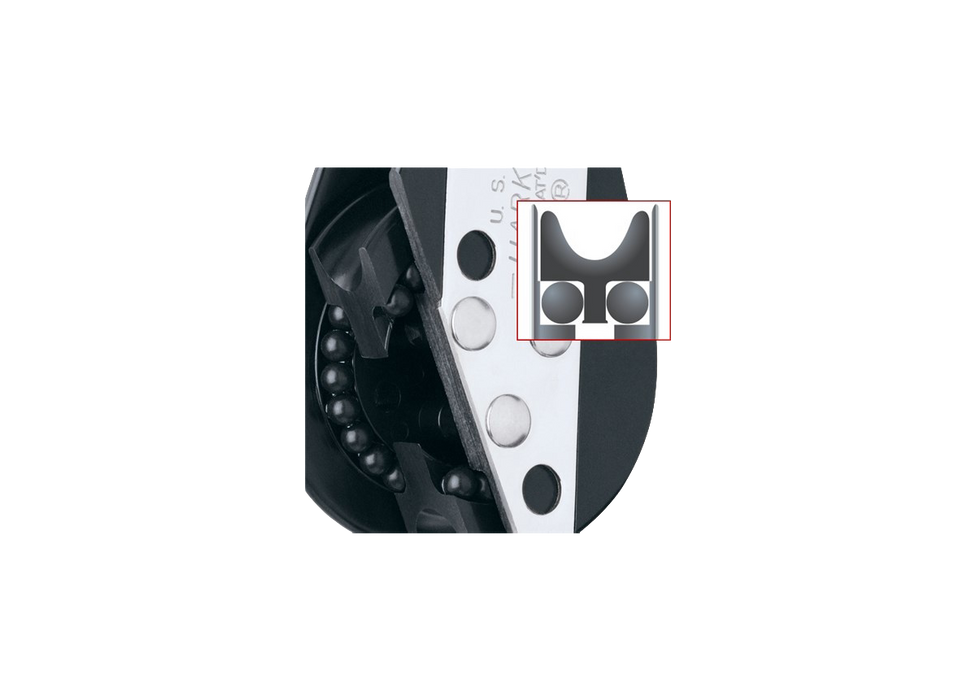

The simple construction requires no lubrication. Simply flush with fresh water to keep bearings free rolling. These robust pulleys are ideal for handling high loads. Free-running Delrin® ball bearings roll on flat races to allow fast haul and release under high or low loads. Metal and composite construction.
CE certified to EN13157 for hand-operated lifting equipment.
| Sheave Ø (mm) | 76 mm |
| Sheave Ø (in) | 3 in |
| Length (mm) | 156 mm |
| Length (in) | 6 1/8 in |
| Weight (g) | 397 g |
| Weight (lb) | 0.88 lb |
| Shackle pin Ø (mm) | 8 mm |
| Shackle pin Ø (in) | 5/16 in |
| Maximum line Ø (mm) | 14 mm |
| Maximum line Ø (in) | 9/16 in |
| Maximum rated load (kN) | 5 kN |
| Maximum rated load (lb) | 1124 lb |
| Rope type | Fiber |
| Turns | clockwise |
