ISC A-Frame Deadweaight Anchor
The ISC DW200.3 A-Frame is a portable anchor device engineered for flat roof surfaces, requiring just a 300mm (12”) upstand. Quick and effortless to assemble, dismantle, store, and transport, it’s perfect for applications lacking a structural balustrade.
Specifically designed for use with Olympic weight plates, the A-Frame accommodates 12 x 25kg weight plates.

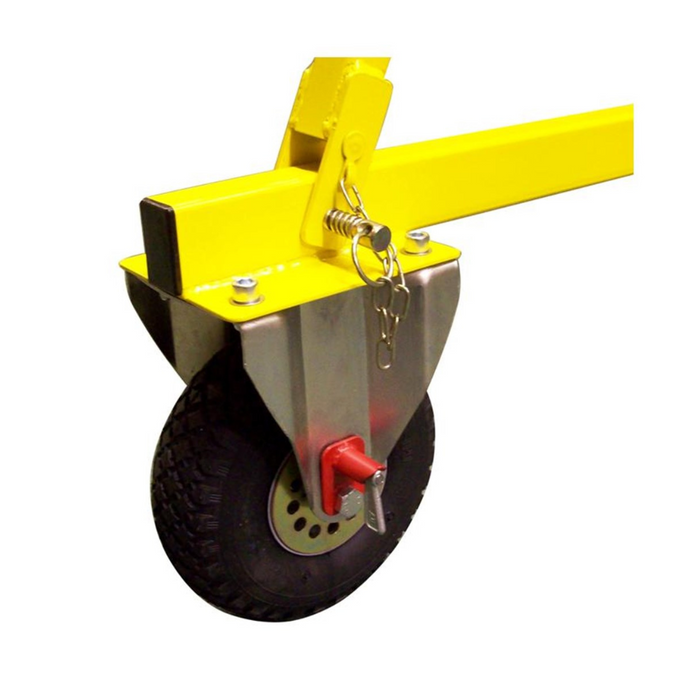

The A-Frame is fitted with pneumatic tyres as standard, or can be fitted/supplied with solid wheels, on request.
NEW Certifications/conformity:
CE Marked to EN795:2012 (Type E): The latest and most stringent EN Standard for Anchors.
PD CEN/TS 16415: Advisory standard - Recommendations for use of anchor points by more than one person simultaneously (fully rated for two person rescue loads).
IRATA International Code of Practice (ICOP) Compliant: Meets the 15kN static load testing, making them the only ICOP compliant Deadweight Anchors available on the market.
Features & Applications:
Suitable for use on flat roof surface
(Only 300mm upstand required)
2180mm (7'1") High anchor points

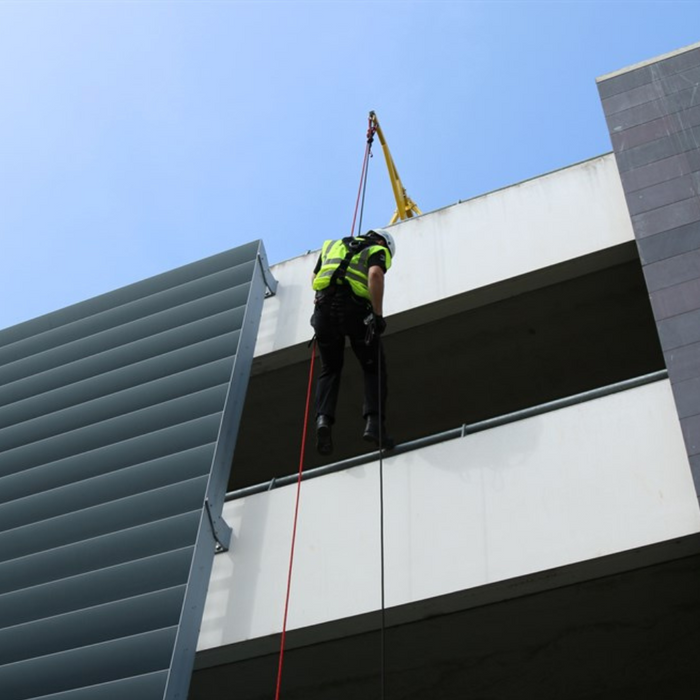

Enables user to easily start their descent
No damage to surfaces
Does not require penetration of roof membrane

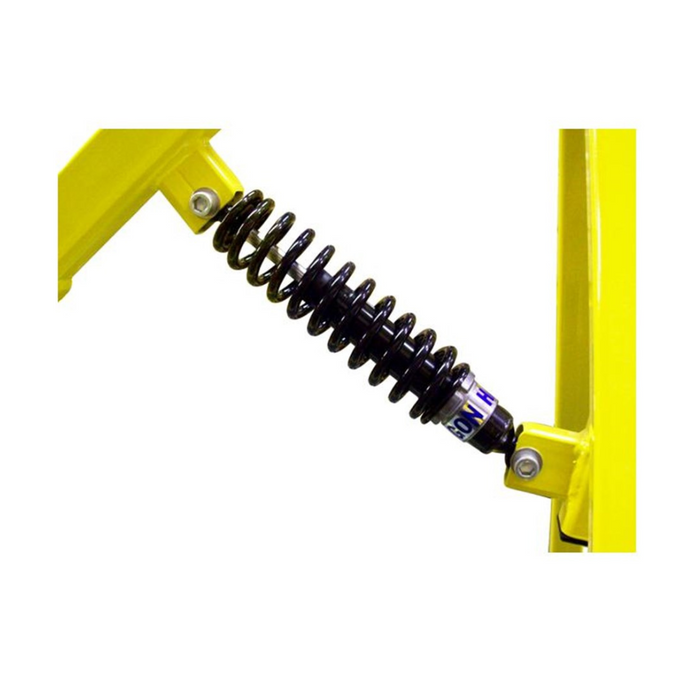

Built in shock absorber
Unit can easily be moved sideways
Reducing the need for re-rigging
Minimal assembly required
Click the video link below to see the A-Frame in action
Technical Information
Number of persons 2
(SWL) Safe Working Load 200kg
Serial numbering As standard
Finish Powder coated
Colour Yellow
Weight 87kg frame, plus 12 x 25kg weight plates
Approved Standards
CE 0120 EN795:2012 TYPE E
PD CEN/TS 16415: Advisory standard - Recommendations for use of anchor points by more than one person simultaneously (fully rated for two person rescue loads).
IRATA International Code of Practice (ICOP) Compliant: Meets the 15kN static load testing, making them the only ICOP compliant Deadweight Anchors available on the market.
Notes
This product must be used against an up-stand (structural balustrade) of minimum 300mm height. The maximum height of the up-stand should not exceed 1500mm.
