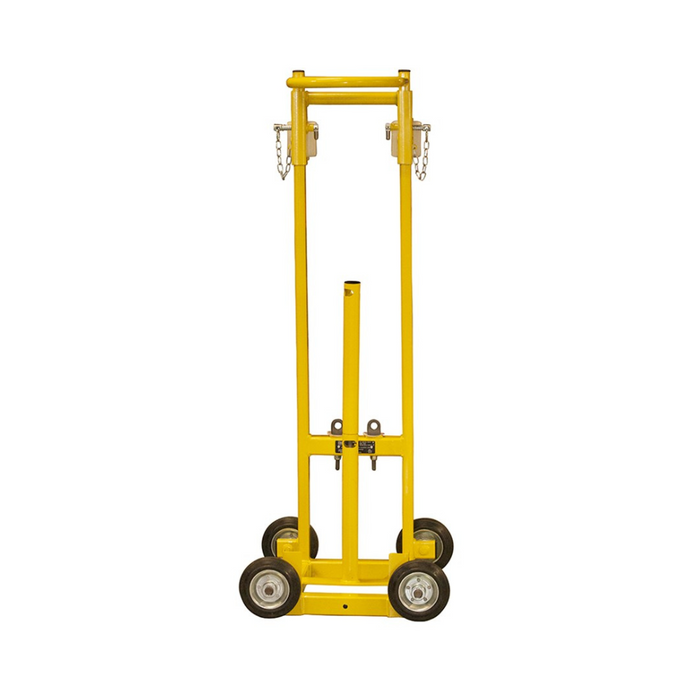

ISC Dead Weight Trolley
The DW100.3 Deadweight Trolley has been designed for use with Olympic Weight Plates (supplied with 6 x 25kg Plates, as standard). The device can also be purchased without weight plates, reducing shipping costs by allowing users to purchase weights locally.
Certifications/Conformity:
CE Marked to EN795:2012 (Type E): The latest and most stringent EN Standard for Anchors.
PD CEN/TS 16415: Advisory standard - Recommendations for use of anchor points by more than one person simultaneously (fully rated for two person rescue loads).
IRATA International Code of Practice (ICOP) Compliant: Meets the 15kN static load testing, making them the only ICOP compliant Deadweight Anchors available on the market.
Features & Applications

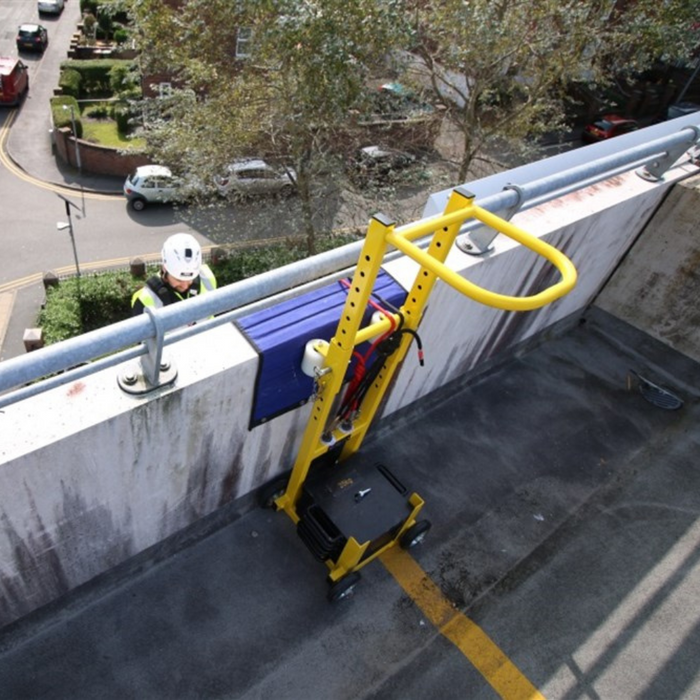

Use behind Structural Handrails, Balustrades & Parapet walls
(Requires minimum 600mm upstand)
Ideal for confined working spaces
Requires working area of only 540mm x 540mm
Minimises rigging time
Unit can easily be moved sideways during use
Static load tested
Relevant for two man rescue
Quick, easy set up
No alteration to building aesthetics
Does not require penetration of roof membrane
Low maintenance
Component parts weigh 25kg maximum
Conforms to manual handling regulations
Cost effective & versatile
Great as an alternative to permanent anchor systems
Technical Information
Number of persons 2
(SWL) Safe Working Load 200kg
Serial numbering As standard
Finish Powder coated
Colour Yellow
Weight 31kg frame, plus 6 x 25kg weight plates
Approved Standards
CE 0120 EN795:2012 TYPE E
PD CEN/TS 16415: Advisory standard - Recommendations for use of anchor points by more than one person simultaneously (fully rated for two person rescue loads).
IRATA International Code of Practice (ICOP) Compliant: Meets the 15kN static load testing, making them the only ICOP compliant Deadweight Anchors available on the market.
Notes
This product must be used against an up-stand (structural balustrade) of minimum 600mm height. The maximum height of the up-stand should not exceed 1200mm.
