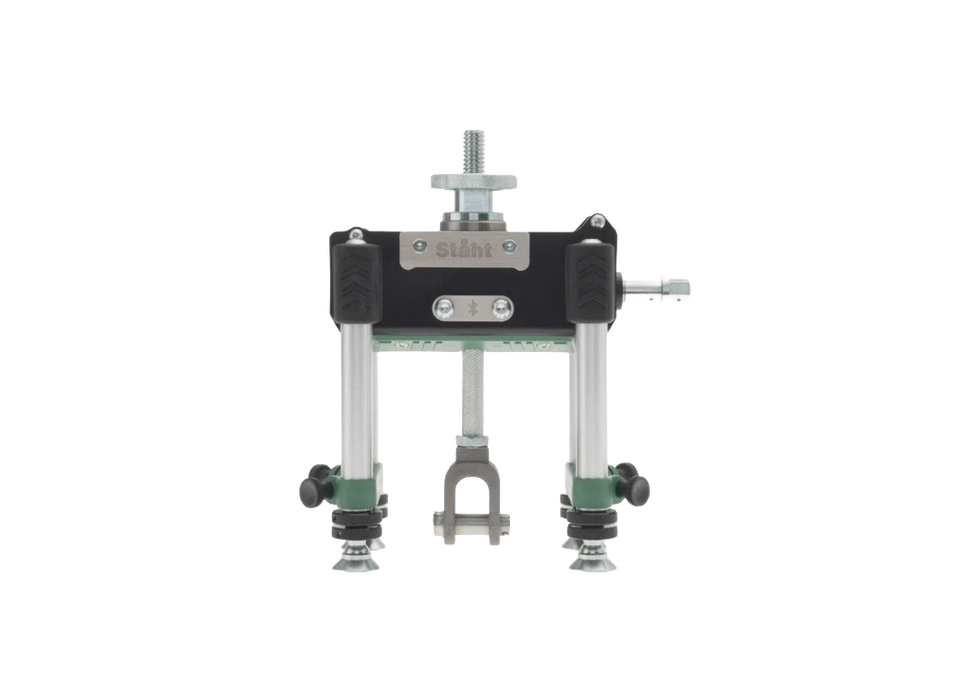

Staht t60 Digital Pull Tester

The Staht t60 Digital Pull Tester is a compact, powerful and innovative machine, enabling the user to reach 60kN with ease. It provides a single solution for all typical on-site proof testing applications. The digital interface and Bluetooth ® Connectivity provide an excellent user experience and an efficient reporting workflow to improve productivity.

Kit Product Features

• 60kN at less than 25Nm of torque.
• Staht® Connect App for Android and iOS included as standard.
• Bluetooth® wireless technology with a 10m range.
• Sunlight ready full colour screen, visible in all light conditions.
• Live and Peak Load displayed simultaneously on the test screen.
• Imperial & Metric recording.
• USB re-chargeable Li-ion battery.
• Four legs for strength and stability.
• 1m USB charging cable is provided; ideal for charging at home or on the move.
• 12 months calibration certificate provided.
• Annual calibrations can be performed digitally by your local approved laboratory, reducing shipping costs and downtime.
• Superior hydraulic seal design in a closed system prevents oil loss and the requirement for regular oil replenishment.
• Trapezoidal 16mm rapid advance drop rod and an increased bridge height eliminates the need for adjustable legs, reducing setup time.
• Trapezoidal 16mm rapid advance drop rod requires no lubrication or bearings.
• Captive feet and lock nuts provide fine height adjustment and prevent inadvertent loss or overloading of the legs at the maximum bridge height.
• Height adjustable leg braces provide additional strength and torsional stiffness.
• The bridge chassis surrounds the hydraulic load cell and gauge provides protection from accidental damage.
• Ergonomic moulding provides a positive grip in all testing orientations.
• Hydraulic load cell can be removed from the bridge assembly for other testing applications.
• Clevis adaptor assembly incorporates a captive pin. This prevents inadvertent loss and enables faster engagement of the eyebolt.
• Anchor jaw features a captive design and magnets to prevent inadvertent loss of the slotted washers.
• Slotted washers and knurled threaded washers made from high strength steel enable anchors from M6 to M20 to be proof loaded.
• Tool tethers are provided for the safe attachment of the Proof Load Tester and the 3/8” reversible ratchet wrench.
• The Staht t60 Digital Pull Testing Kit is supplied in either a rugged protective case, with a custom foam insert.
